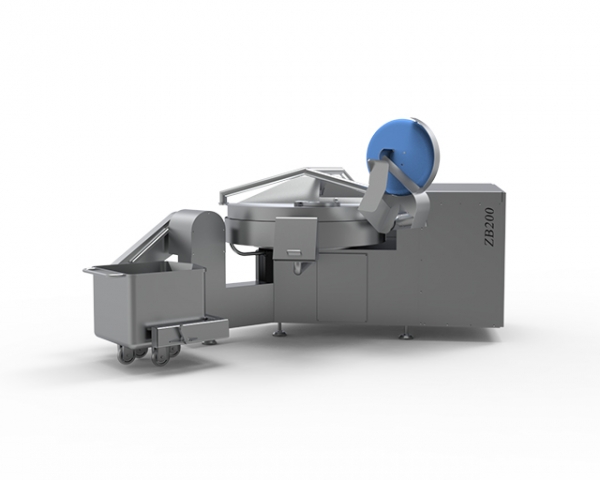

Bowl cutter_Meat Processing Equipment Series_Foshan Aokai Machinery Technology Co.,Ltd

Product advantages

Adopting the principle of rotary cutting, efficient cutting, increasing linear speed, and reducing temperature rise (inlet and outlet temperature rise within 4 ℃);
Especially for chopping meat products, it can quickly extract protein from meat, achieve the effect of oil in water, and enhance the structural fragility of the product;
The use of permanent magnet motors saves 20% of electricity compared to similar equipment;
The chopping and mixing of brushed protein and soybean protein can be achieved quickly by using products such as crab fillet, crab fillet stick, fish balls, and fish tofu, achieving high-quality protein structure;

Product parameters

型号Model	ZB80	ZB125	ZB200	ZB330	ZB525
功率 Power	13.97kW	46.67kW	58.75kW	80.6kW	120.2kW
斩锅容积Chop pot capacity	80L	125L	200L	330L	525L
生产能力production capacity	40~50kg/ 次 (time)	60~80kg/ 次(time)	100~140kg/ 次(time)	240~260kg/ 次 (time)	300~420kg/ 次(time)
斩刀转速Chopper speed	200/1500/3000 rpm	300~3000 rpm	300~4500 rpm	300~3600 rpm	300~3600 rpm
重量Weight	1820kg	3700kg	4900kg	7900kg
斩锅转速Chopper speed	10/16rpm	10/16 rpm	7.5/10/15 rpm	8~12 rpm	1~5 rpm
提升重量 Increase weight	/	/	标配提升机，可提升重量250kg/ 次 Standard hoist, capable of lifting a weight of 250kg/time
刀具数量Number of tools	6pcs	6pcs	6pcs	6pcs	6pcs
出料速度 Discharge rate	83rpm	83rpm	83rpm	83rpm	30~100 rpm
外形尺寸(LxWxH) External Dimension	196011701240mm	229014901510mm	220020001820mm	243023002100mm	306023502650mm
